0802 Brushless Motors

We are sorry to announce that 0802 Brushless Motors is discontinued and will not be available for sales anymore. We recommend you buy its great alternative 0802SE Brushless Motors.

Based on the multi-testing, we have upgraded our 0802 22000/19500/14000KV motors on 2 main points.

• Using ball bearing in the 22000/19500 high KV 0802 motors. Motion provided by linear ball bearings is generally smoother than brass bushings. Also, the motor is more durable in high RPM.

• Lead wire soldered to the PCB, which allows you to repair it easier once disconnection.

Awesome performance on power and thrust, perfect design on dynamic balance, high recommend for brushless whoop drone. There are 5 different KV value for your choice, you can pick the perfect motor for your drone. A 1.0mm header pins connector is included. So no soldering needed, just plug and play.

0802 Motors	Drone	Battery	Voltage
22000KV	Beta65 Pro Beta75 Pro	1S	3.7V
19500KV	Beta65 Pro Beta75 Pro	1S	3.7V
17500KV	Beta65 Pro Beta75 Pro	1S	3.7V
14000KV	Beta65X FPV Beta65X HD	2S	7.4V
12000KV	Beta65 Pro 2 Beta75 Pro 2	2S	7.4V

Note: DO NOT recommend the 22000KV / 17500KV / 19500KV 0802 motors for 2S power. If you try this combo, the motors will overheat and burn (maybe the ESC). As a result, it will cause permanently damage on the motor or ESC.

BULLET POINTS

• 0802 14000KV motor is specially designed for 2S whoop drone like Beta65X FPV / Beta65X HD
• 0802 22000KV/19500KV/17500KV motors are suitable for 1S brushless drone - Beta65 Pro and Beta75 Pro.
• 0802 12000KV motors are for 2S brushless drone, like Beta65 Pro 2 and Beta75 Pro 2. The representation for power, experience the fast and powerful outdoor flight.
• Perfect for indoor high-speed flying, the power of 19500KV motors are obviously improved with the flight time of 3mins.
• Shaft diameter is 1.0mm, come with Micro JST-1.25 3-pin connector, convenience for installation.

RECOMMENDED PARTS

0802 22000KV / 19500KV / 17500KV Motor:

• Propellers: 31mm 4-blade props / 40mm 4-blade props
• Frame: Beta65 Pro frame / Beta75 pro frame
• FC: F4 1S Brushless FC
• Battery: 1S Battery

0802 14000KV Motor:

• Propellers: 31mm 4-blade props / 40mm 4-blade props
• Frame: Meteor65 Frame / Beta75 pro 2 frame
• FC: F4 2S AIO Brushless FC
• Battery: 2S Battery

0802 12000KV Motor:

• Propellers: 31mm 4-blade props
• Frame: Beta65 Pro 2 frame / Beta75 pro 2 frame
• FC: F4 2S AIO Brushless FC
• Battery: 2S Battery

PACKAGE

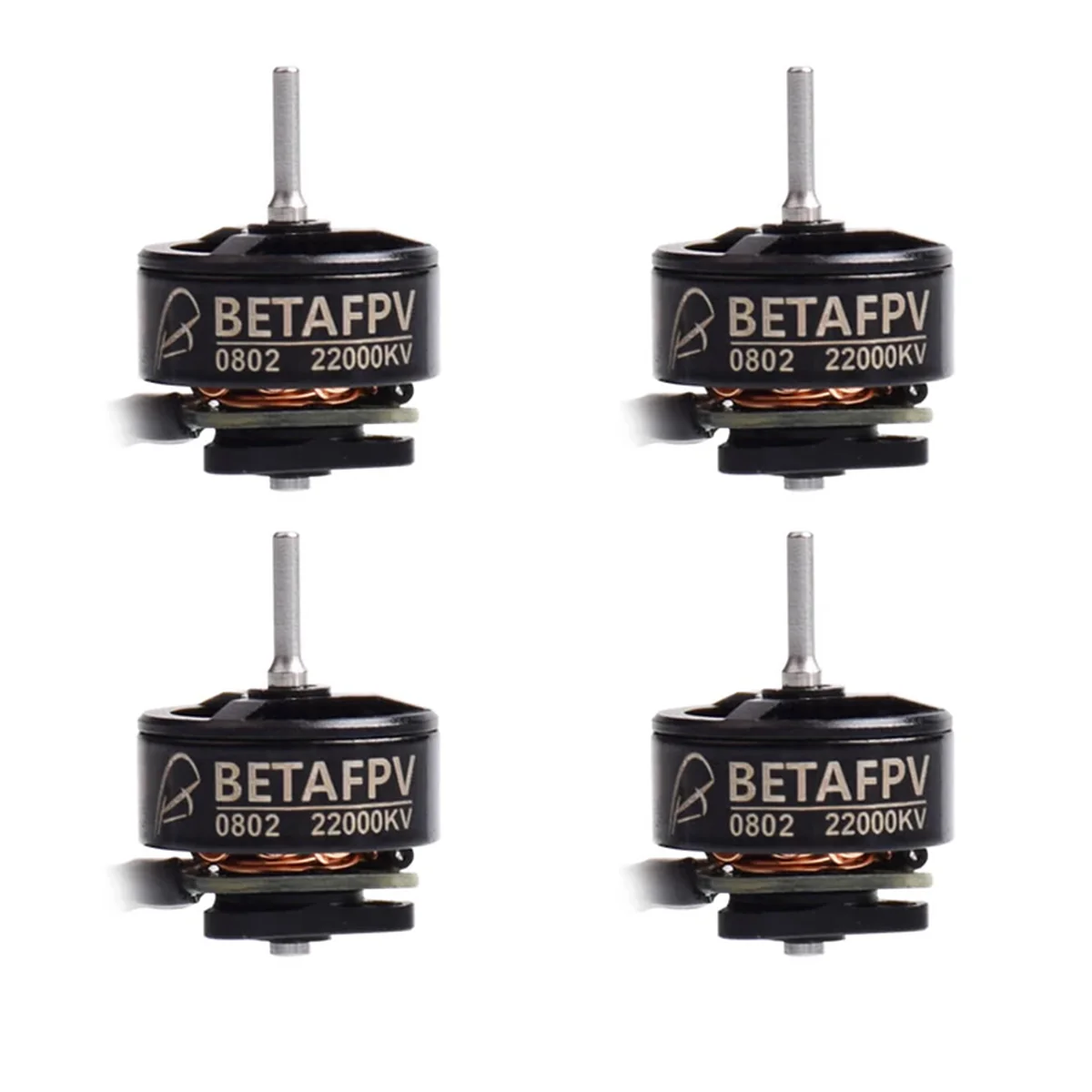

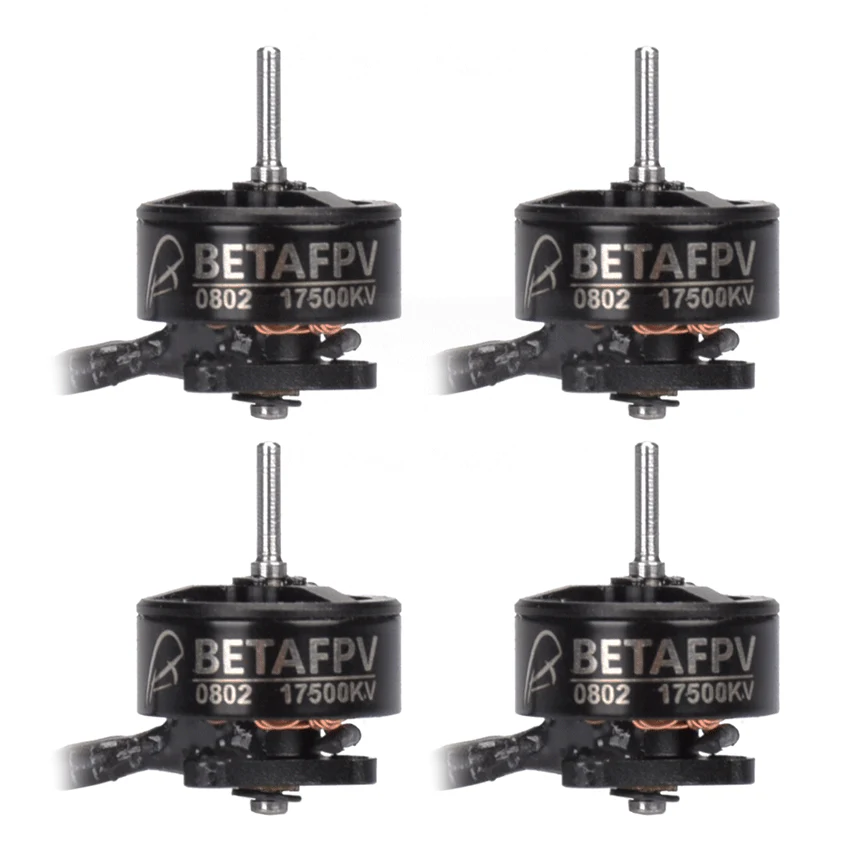

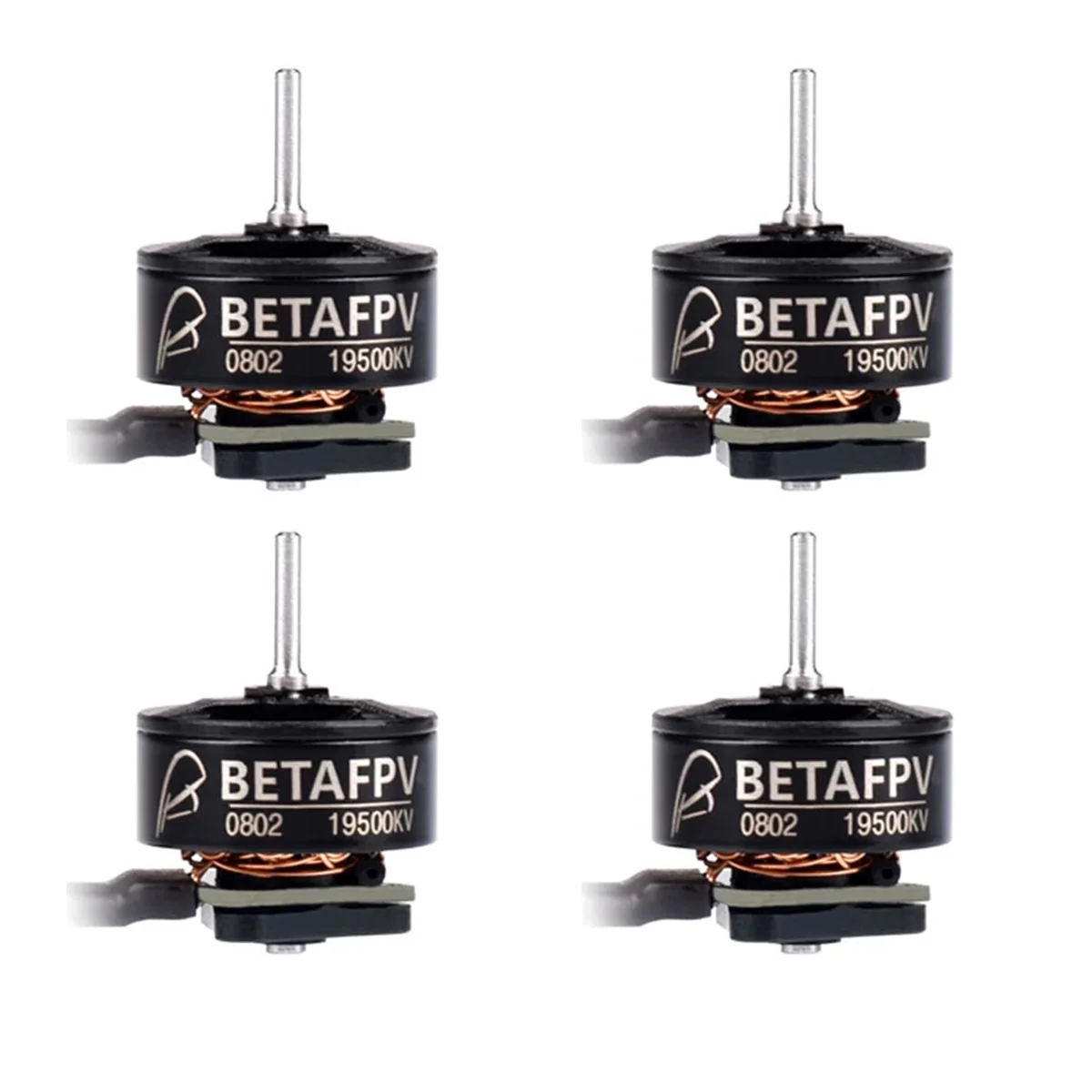

• 4 * BETAFPV 0802 Brushless Motors
• 1 * Pack of M1.4*3 screws
